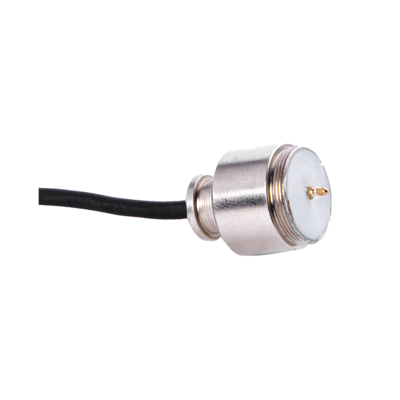

Voltage Supply Preamplifier NS20

Type: NS20
Frequency range (Hz): 10Hz~100kHz(±0.5dB)
Input impedance: >5GΩ
Output impedance: <110Ω
A-weighted of noise: <3 μVrms
Maximum output voltage: 6.9Vrms
Power supply mode: DC 4V-28V
Noise linearity (20-20kHz): <10 μVrms
Maximum input voltage: 7.072Vrms(20Vpp)
Interface type: Three Wire Output
Applicable temperature: -40℃ ~ +70℃
Product Details


>Product Introduction

NS20 preamplifier is a voltage powered preamplifier with the characteristics of high input impedance, low background noise and wide frequency response range. It can be used with the 1/2-inch pre polarization measurement microphone of MP21. At the same time, it can also be compatible with other brands of measurement microphones, such as B&K, G.R.A.S. The output adopts a three wire plug, which can easily carry out power supply configuration and signal output. It is suitable for electroacoustic tester, multi-channel analyzer and other instruments.


>Technical Parameter

Frequency Range

10Hz~100kHz(±0.5dB)

Input Impedance

>5GΩ

Output Impedance

<110Ω

Power Supply Mode

DC 4V-28V

Electrical Noise( A-weighted )

3 μVrms

Noise,Linearity(20~20kHz)

10 μVrms

Maximum Input Voltage

7.072Vrms(20Vpp)

Maximum Output Voltage

6.9Vrms

Interface Type

Three Wire Output

Applicable Temperature

-40℃ ~ +70℃

Screw Thread Connector

11.7mm~60UNS(M11.7×0.423mm)
