>Product Introduction

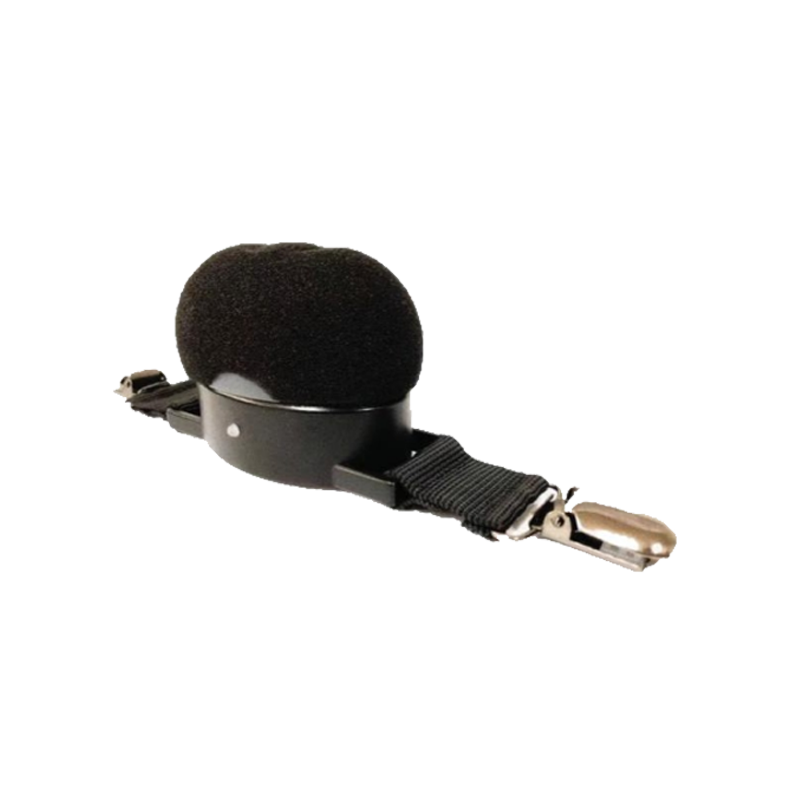

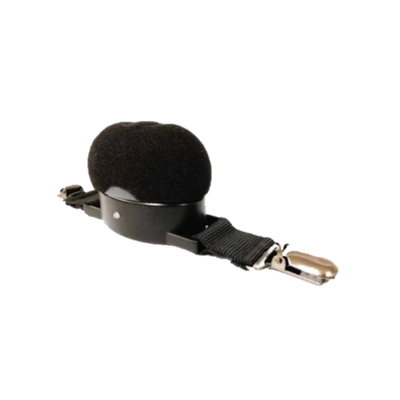

The sound exposure meter is mainly used to measure the dose of noise exposure to the human body in a certain period of time, and the position of wearing is mainly concentrated near the human ear. This product conforms to the standard GB/T 15952-1995 "personal sound exposure meter technical requirements".
>Technical Parameter
1. Bluetooth connection mode can realize independent wearing of the front end of collection.
2. Compact and firm structure, reduce the interference to the operator.
3. No wire, button control and external microphone, reduce the risk of misoperation and external interference.
4. Two working modes of real-time transmission and offline operation.
5. One-third octave spectrum analysis.
6. Generate test report with one click.
| HCC0-s Model |
Frequency Range | 20Hz～10kHz |
Dynamic Range | 60～140dB (A) |
Frequency Meter Weight | A, B And C Weighting And Linearity |
Connection Mode | Bluetooth Connection |
Software Platform | Windows Version Or Android Version |
Measurement Index | Maximum Sound Level (Max), Minimum Sound Level (min), Equivalent Continuous Sound Level (Leq), Average Sound Level (Lavg), Time-weighted Sound Level A.(TWA), Sound Exposure Level (SEL), Exposure DOSE (dose), Sound Exposure (exp), Sound Exposure Level (Lae) |
|
Working Conditions | -10℃ ~ 50℃ Relative Humidity: 0 ~ 90% |
Size | Acquisition Front End: 84.5×42.5×56mm Receiver: 56× 21× 11 mm. |
Weight | Acquisition Front End: 80.8g Receiver: 10.3g |
