>Product Introduction

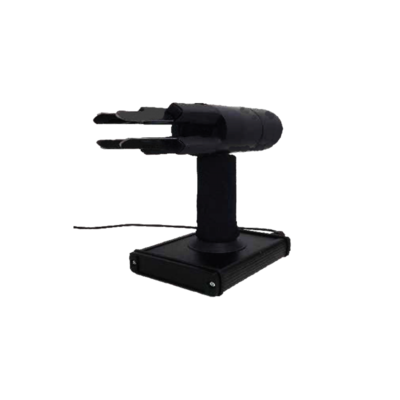

Acoustic compass is a kind of three-dimensional sound intensity detection equipment, which can satisfy the location of sound source from low frequency to high frequency in three-dimensional space. The analysis results will be presented in the form of frequency spectrum, including the amplitude information and incident direction of each frequency line.
>Technical Parameter
Acoustics Guide |
Array Size | 40mmx40mm |
Material | Composite Material |
Weight (Excluding Tripod) | 0.5kg |
Sound Intensity Probe | 28 |
Sampling Rate | 48 kHz |
Microphone Frequency Range | 10Hz～24kHz |
Working Range | <33dB～120dB |
Dynamic Range | Up To 30dB |
Sound Source Distance | Greater Than 0.01m |
Resolution Ratio | 24 bits |
Interface | Ethernet |
Working Temperature | -40°C～+60°C |
Working Humidity | No Condensation |
>Product Features
1. Online analytics.
2. Sound source can be located in narrow space.
3. Portability is very high.
4. Easy to use a similar compass.
5. Three-dimensional sound intensity test.
6. Frequency range 40HZ-4khz.
>Application Scenarios
1. Noise leakage monitoring.
2. Machine noise.
3. Noise in cabin.
4. The vehicle internal noise.
5. Steady state and quasi-synchronous noise sources.
